Product Information

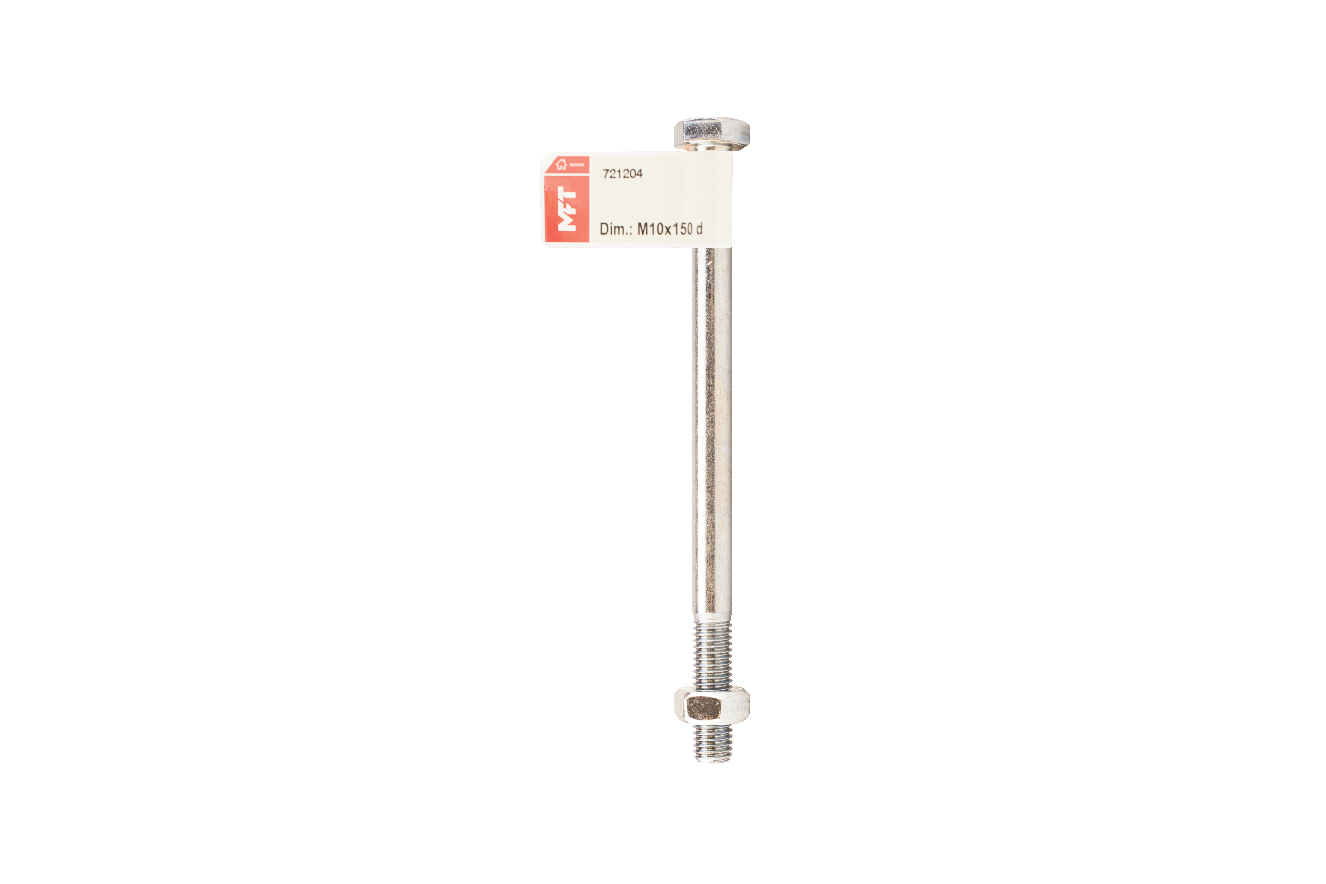

Hex head screw M6S with nut

Zinc electroplated

  • 721204 Sekskantskrue ELF m_mutter DIN931-934 (a)
    • asdfasdf
  • 721204 Sekskantskrue ELF m_mutter DIN931-934 (c)
    • asdfasdf
  • 721204 Sekskantskrue ELF m_mutter DIN931-934 (b)
  • 721204 Sekskantskrue ELF m_mutter DIN931-934 (a)
  • 721204 Sekskantskrue ELF m_mutter DIN931-934 (c)
  • 721204 Sekskantskrue ELF m_mutter DIN931-934 (b)
Product number:
721204
GTIN-no:
7034357212048
Product name:
SEKSKANTSKRUE ELF M10X150D FLAGG A1
Dimensions:
Dimensions (D x L):
M10 x 150 mm
Length:
150 mm
Screw dimensions (D x L):
Threads:
Delgjenget
Thread dimensions:
M10
Thread length:
32 mm
Body diametre:
Breakability:
46,40 kN
Groove type:
Screw head:
Sekskant
Hodediameter:
Hexagon:
17 mm
Dimension hexagon head (D x H):
17,77 x 6,4 mm
Head Dimension (D x H):
Square bracket set:
Corrosion class:
C1
Yield:
37,10 kN
Torque:
Certification:
ISO 4014
Material:
Stål (Kvalitet 8.8)
Coating:
Elektrolytisk forsinket
Pcs / Pkt:
1
Features
MFT-hex head screw M6S is made after standard DIN931/ISO4014 and nut standard DIN934.
Hardened carbon steel, strength 8.8
Zinc electroplated coating.
Corrosion category C1.
Partially threaded.
More information

Delivered separately.

Used together with nut in installations of wood and steel materials. Indoor use.
