Product Information

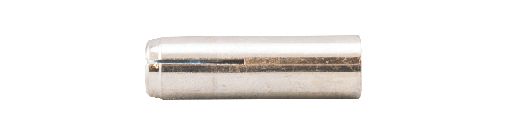

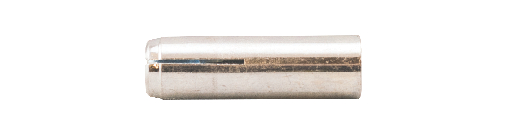

Anchor Hammerset
Electroplated zinc
asdfasdf
asdfasdf
- Product number:
- 879102
- GTIN-no:
- 7034358791023
- Dim.:
- M10
- Gjenge- lengde:
- 15 mm
- Anker- lengde:
- 40 mm
- Material:
- Stål
- Coating:
- Elektrolytisk forsinket
- Bor- dybde:
- 40 mm
- Antall /F-pak:
- 50
Features
MFT electroplated zinc anchor hammer belongs to corrosion category C1.
Pre-installed.
M10 inside thread, depht 15 mm.
Suitable for concrete class K20/25.
Pre-installed.
M10 inside thread, depht 15 mm.
Suitable for concrete class K20/25.
More information

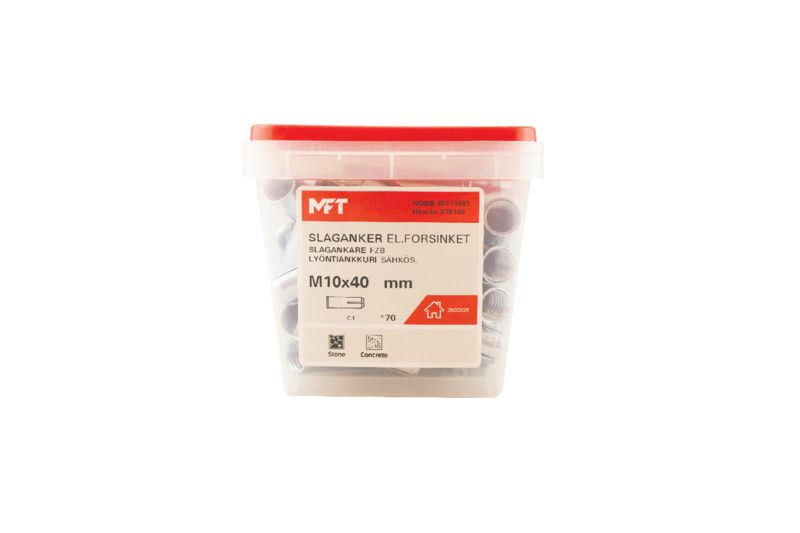

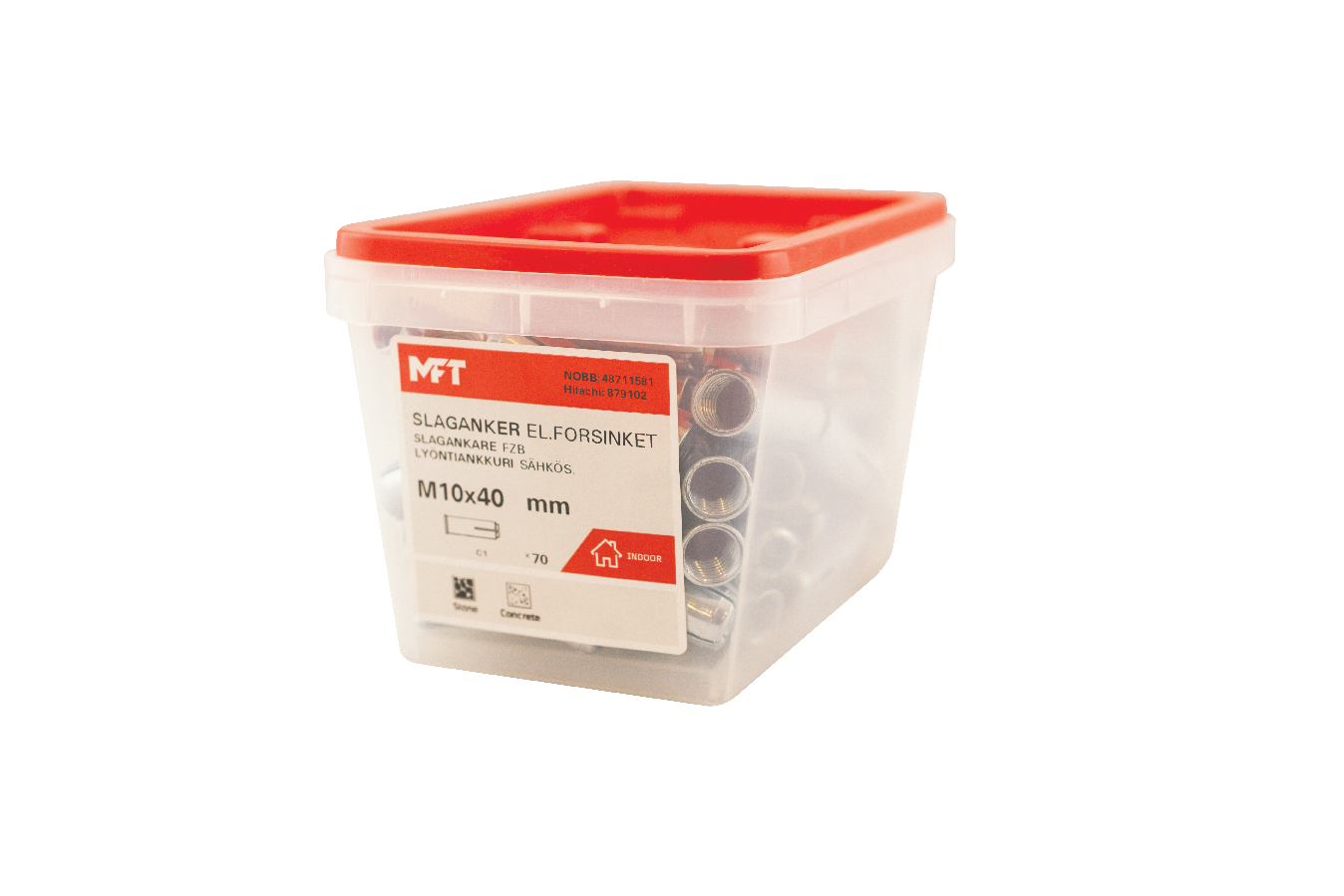

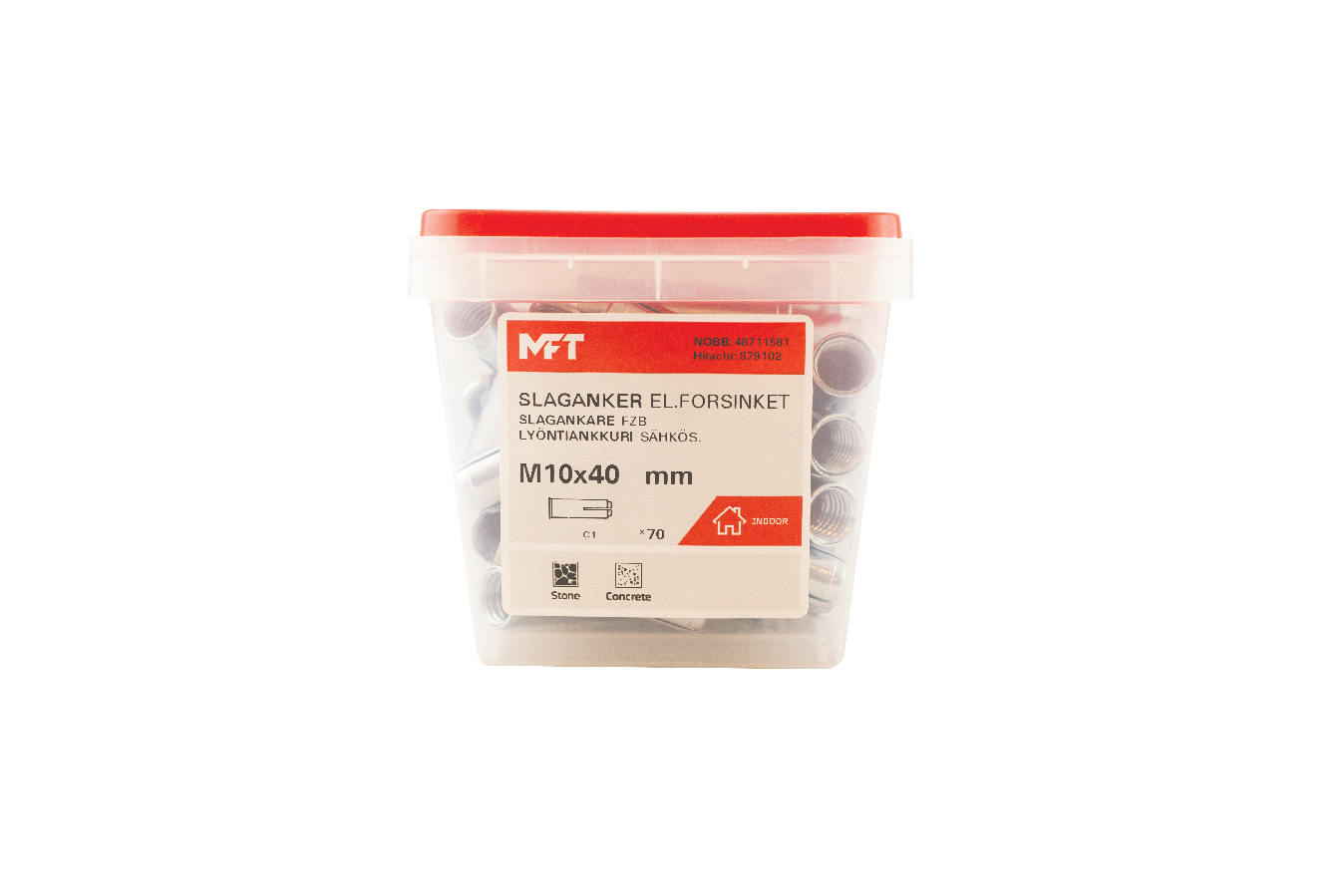

Delivered in plastic box 70 Qty/pack.
MFT-anchor hammer is used for installation of pipes and steel materials etc. For temporary attachment of concrete and natural stone. For indoor use.
| Dim. | Bor- dim. | Maks uttrekk B20/25 | Maks uttrekk B30/35 | Maks skjær B20/25 | Maks skjær B30/35 |
|---|---|---|---|---|---|
| M6 | Ø8 | 2,0 kN | 2,7 kN | 0,9 kN | 1,32 kN |
| M8 | Ø10 | 2,7 kN | 3,3 kN | 3,3 kN | 4,0 kN |
| M10 | Ø12 | 4,0 kN | 6,0 kN | 4,7 kN | 5,3 kN |
| M12 | Ø15 | 6,0 kN | 8,0 kN | 6,0 kN | 6,7 kN |
| M16 | Ø20 | 8,0 kN | 10,7 kN | 8,0 kN | 9,3 kN |
| M20 | Ø25 | 13,3 kN | 18,7 kN | 13,3 kN | 16,0 kN |
