Product Information

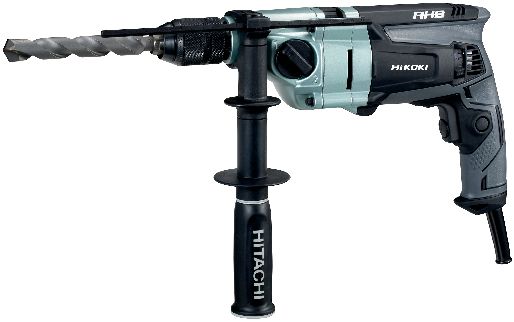

Impact Drill 1.120W
DV22V
- Product number:
- 68102519
- GTIN-no:
- 4966376287673
- Product name:
- IMPACT DRILL DV22V
Side handle, depth gauge and carry case
Features
All metal keyless chuck
AHB (Aluminium Housing Body)
Safety slip clutch
Full speed reverse
Lock off (deadman) variable speed
trigger and dial
Carbon brush rotation system increases
power and extends brush life
AHB (Aluminium Housing Body)
Safety slip clutch
Full speed reverse
Lock off (deadman) variable speed
trigger and dial
Carbon brush rotation system increases
power and extends brush life
- Power
- 1.120W
- Chuck capacity
- 1,5 - 13 mm
- Spindle thread
- 1/2" x 20 UNF
- Capacity wood/steel/concrete (low)
- 40/16/22 mm
- Capacity wood/steel/concrete (high)
- 25/8/13 mm
- Speed unloaded (low gear)
- 0 - 1.100 /min
- Speed unloaded (height)
- 0 - 3.000 /min
- Rate without impact (low)
- 0 - 8.100 /min
- Rate without impact (high)
- 0 - 22.000 /min
- Max torque (low)
- 74 Nm
- Max torque (high)
- 28 Nm
- Vibration level m/s² (3D)
- 19,5
- Sound pressure balance dB (A)
- 97,0
- Sound power level dB(A)
- 108,0
- Dimensions (L x H)
- 359 x 209 mm
- Weight
- 3,0 kg
For hard materials such as concrete, tiles and different kind of stones Drilling without impact for wood, steel and aluminium etc.
