Product Information

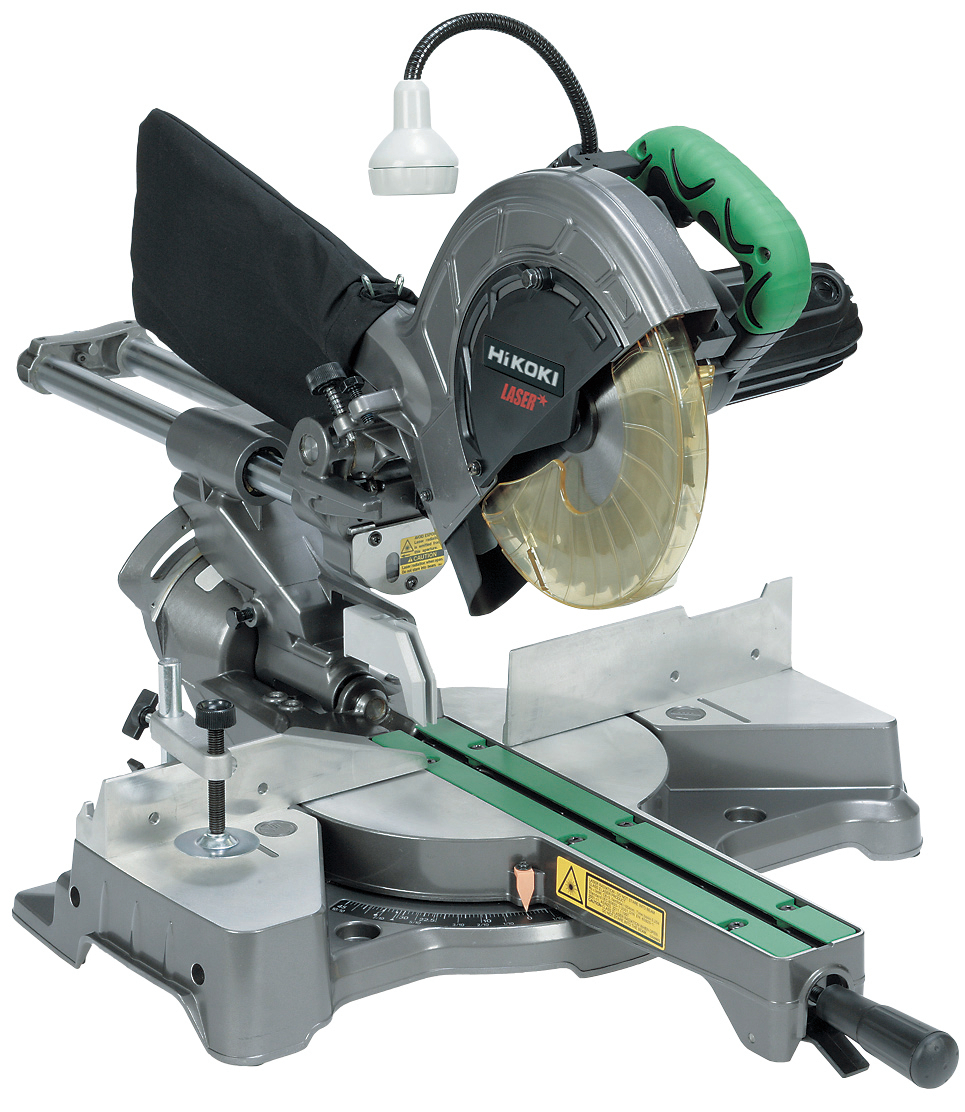

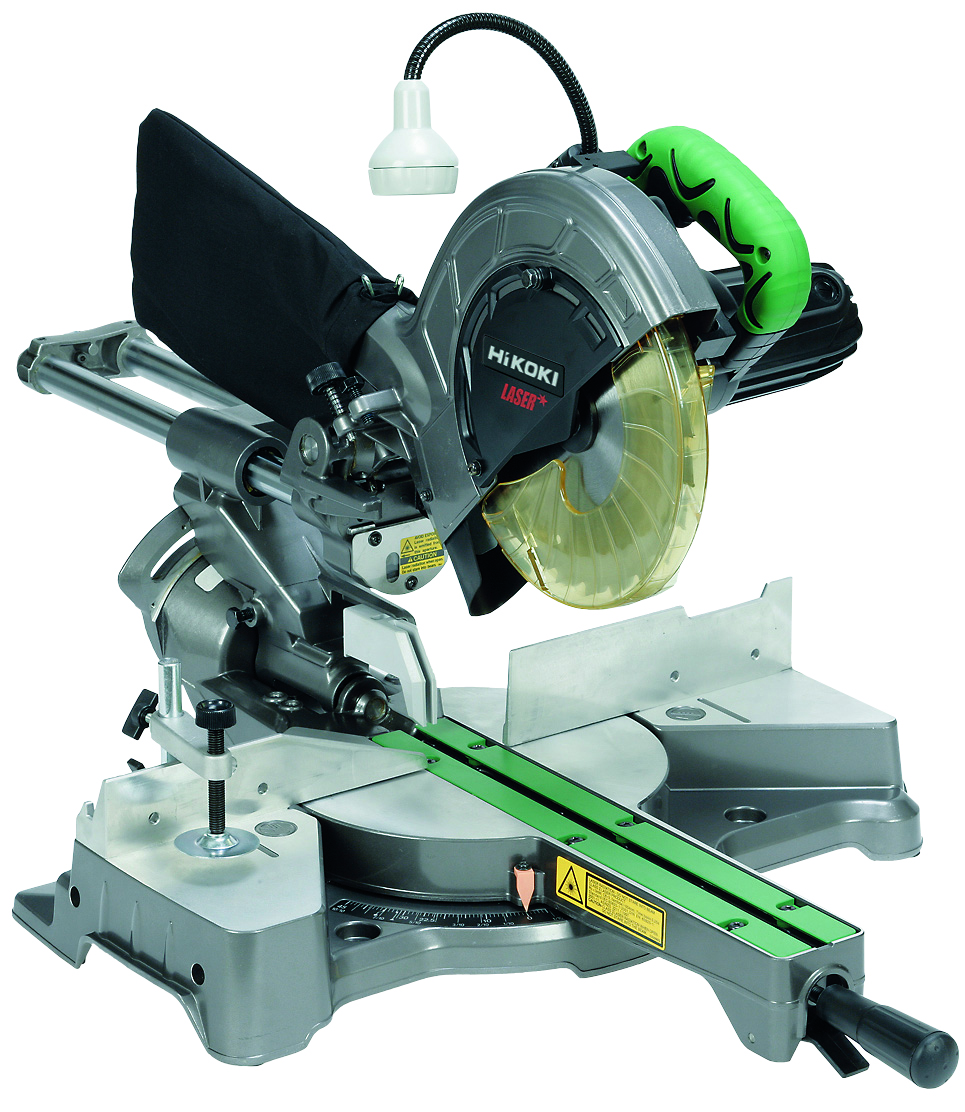

Slide Compound Mitre Saw 1.050W
C8FSHE
- Product number:
- 68100914
- GTIN-no:
- 4966376293254
- Product name:
- MITER SAW C8FSHE 1050W SOFT START
Blade, dust bag, vice assembly and wrench
Features
Dual linear ball bearings guide the slide for superior accuracy
Die cast base with turn table for increaseddurability
Positive mitre stops for quick and easy adjustment
Quick change depth adjustment guide Lightweight for easy transportation
Die cast base with turn table for increaseddurability
Positive mitre stops for quick and easy adjustment
Quick change depth adjustment guide Lightweight for easy transportation
- Power
- 1.050W
- Blade diametre
- 216 mm (8")
- Attachment
- 30 mm
- Turning plate
- 0 - 57° (right) / 0 - 45° (left)
- Max bevel angle
- 0 - 5° (right) / 0 - 48° (left)
- Speed unloaded
- 4.100 /min
- Max cpty cross-section v/90° (H x W)
- 70 x 312 mm
- Max cpty cross-section v/45° (H x W)
- 70 x 220 mm
- Max cpty bevel angle v/45° (H x W)
- 45 x 312 mm
- Max capacity combocut. v/45° V (H x W)
- 45 x 220 mm
- Max capacity combocut. v/45° (H x W)
- 45 x 220 mm
- Vibration level m/s² (3D)
- <2,5
- Sound pressure balance dB (A)
- 96,0
- Sound power level dB(A)
- 105,0
- Dimensions (L x W x H)
- 790 x 555 x 485 mm
- Weight
- 14,5 kg
For variable materials
